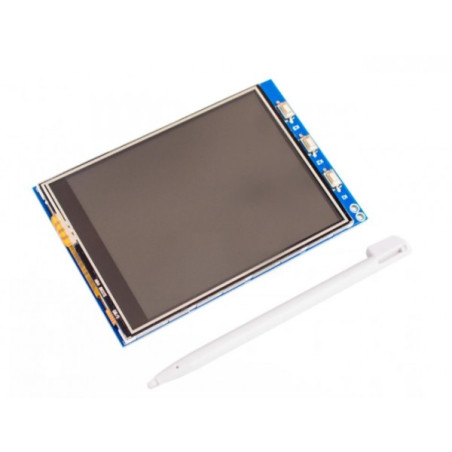

LCD3.2ARD

3.2 inch, 240 * 320 resolution with TFT touch screen;

   Display driver chip SSD1289 / ILI9341, touch screen driver chip for XPT2046;

   Display Interface for 16bit parallel interface, support for 6800 and 8080 bus interface, support for the STM32 FSMC bus interface refresh speed;

   Touch screen interface for the SPI interface, the data line low, driving simple;

   On-board high-current LDO Low Dropout Regulator, compatible with 5V and 3.3V power supply;

   PWM backlight control circuit board can support IO control and PWM dimming control;

   Module with SD card, do digital photo frames and other experiments;

   Set aside SPI FLASH pads, welding can be extended font chip;

   Support horizontal and vertical screen display screen display, support for split-screen display;

   Support 262,000-color RGB display, the display quality is good;

   Screen controller comes with 172,800 bytes of graphics display data storage area;

   The interface is compatible with punctuality atomic Series development board interface;
