Control para impresora 3D
$280.00
IVA incluido

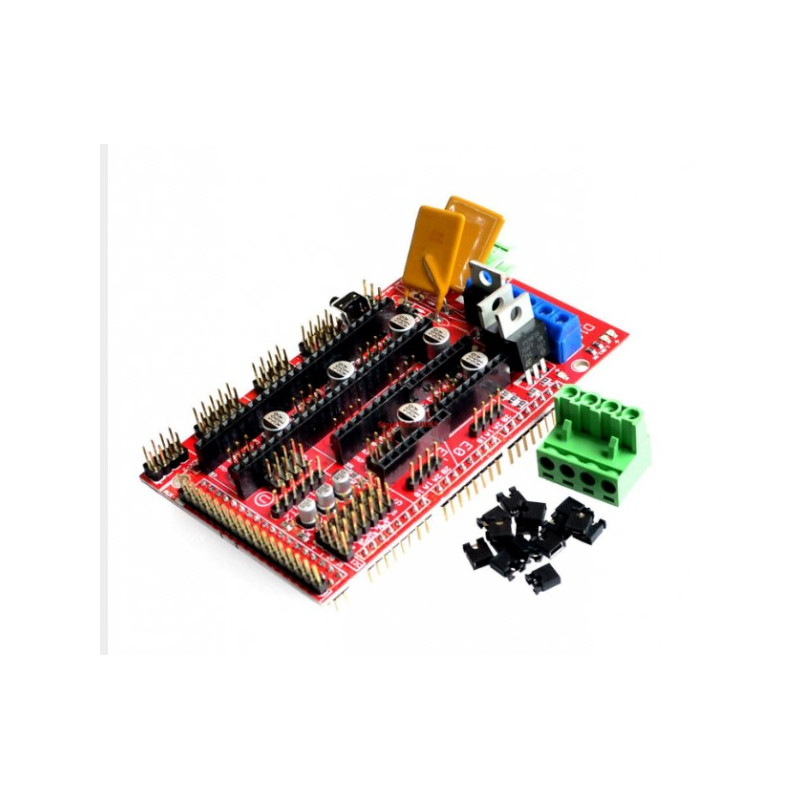

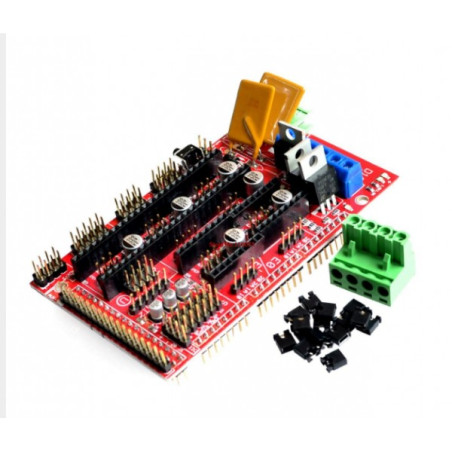

Controlador Motor de pasos RAMPS 1.4 REPRAP 3D. X-49
Las RAMPS son siglas en ingles para Raprap Arduino Mega Pololu Shield, se diseñaron con el propósito de ser usadas con los drivers de corriente POLOLU, como por ejemplo con el chip A4988. Las RAMPS solo pueden ser usadas con un arduino MEGA2560 y drivers A4988/DVR8825. Tienen una gran estabilidad de operación y gran compatibilidad con la mayoría de las impresoras 3D del mercado (reprap prusa i2 i3 etc). Weight: 68g Size: 102mm*60mm Standard interfaces (as that of extruder) Reserved GCI like I2C and RS232 MOSFET 3 MOSFET are applied to the heater/ fan and thermistor circuit. Adding another 5A to protect the component parts. An 11A fuse is added to the hotbed Support 5 stepper drive board The adoption of Pin Header as pololu makes it more convenient to repair or change. I2C and SPI are reserved for expanding All the MOSFET can be controlled by PWM Use the interface of servo motor to adjust the level of printing platform automatically. Adding a SD module for SD ramps module.
X-49
