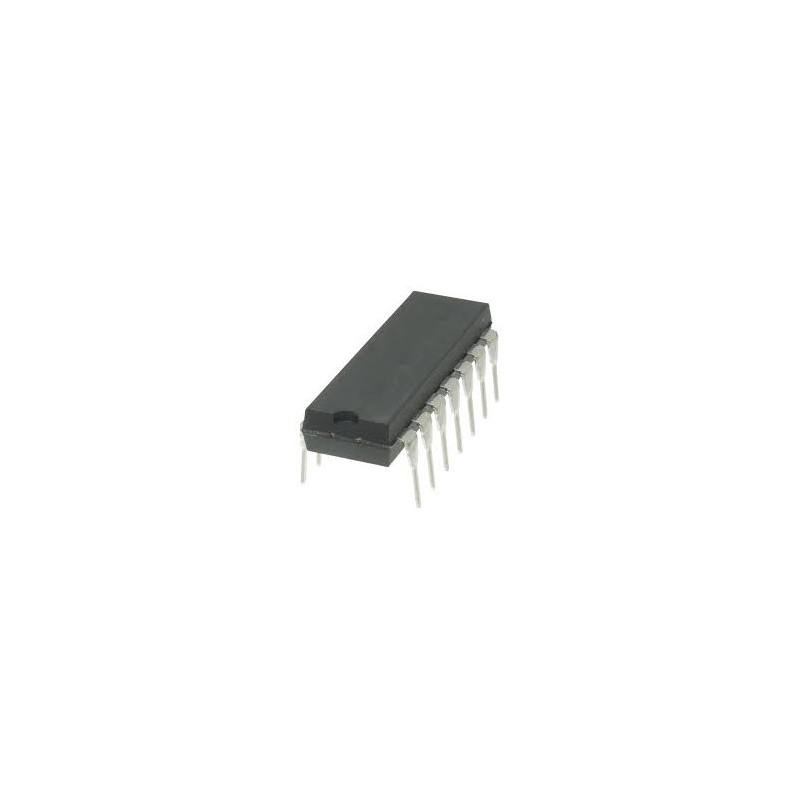

HEF4071BP
$15.00
IVA incluido
CUADRUPLE COMPUERTA OR 2 ENTRADAS. 4071. Q-36
- The HEF4071B is a quad 2-input OR gate. The outputs are fully buffered for highest noise immunity and pattern insensitivity to output impedance variations. It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
- Logic Case Style: DIP
- Logic Type: OR
- MSL: -
- No. of Inputs: 2
- No. of Pins: 14
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Output Current: 2.4mA
- Packaging: Each
- SVHC: No SVHC (16-Jun-2014)
- Supply Voltage Max: 15V
- Supply Voltage Min: 3V
- Supply Voltage Range: 3V to 15V
Q-36
